Corundum brick is a refractory product with a content of alumina more than 90% and the principal crystalline phase is corundum, which has the characteristics of high cold compressive strength (up to 340MPa), high load softening start temperature (more than 1700 degrees C). good chemical stability, strong resistance to acid or basic slag, metal, and glass liquid. The thermal shock stability is related to its structure, and the corrosion resistance of the compact products is good, but the thermal shock stability is poor. It is divided into sintered corundum brick and electric fused corundum brick.

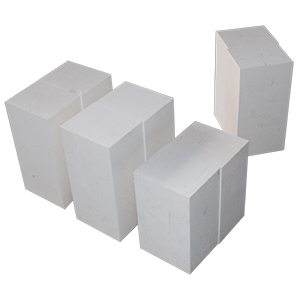

zircon corundum brick
Application of Corundum Bricks
It is mainly used in ironmaking furnaces and blast furnaces hot blast stoves, refining furnaces outside steelmaking furnaces, sliding water devices, glass furnaces, and petrochemical industrial furnaces.
Corundum brick has been widely used in the lining material of high temperature, high pressure, chemical corrosion, and mechanical wear of the petrochemical thermal device, with the improvement of petrochemical industry production technology, many new processes and new technologies used in production to enable the equipment to achieve the large load, long cycle, low energy consumption, low cost, in addition to the transformation of various thermal equipment, put forward higher requirements but also various lining materials on thermal equipment. In order to meet the needs of the petrochemical industry, a series of chromium corundum products with better resistance to high temperature and corrosion resistance have been developed.
Properties of Corundum Bricks
High cold crushing strength, which can reach to 340MPa.
High initial refractoriness under load is more than 1700℃。
Good chemical stability.
Strong resistance to acid and basic slag erosion.
Strong resistance to metal and molten glass erosion.
Dense products have strong resistance to erosion, but their thermal shock resistance is weak.
AZS Brick Introduction
Fused cast zirconia corundum brick, the English abbreviation is AZS, , it is according to three chemical constitution of Al2O3－Zr02－Sio2 ternary diagram, ranked by the content of them, select “Z” from Zr02, select “S” form Sio2. ...
Description for AZS Brick
AZS Brick is a kind of fused cast zirconia-corundum refractory brick which is short writing of abbreviation that AZS from “A” of Al2O3, “Z” of ZrO2 and “S” of SiO2. Such as No. 33 fused cast zirconia-corundum refractory ...
Chrome Corundum Brick Introduction
Chrome corundum brick is a kind of refractory products with Cr2O3 included. In high temperature, Cr2O3 and Al2O3 form into continuous solid, so the high temperature performance is better than the pure corundum produc...
Chrome corundum brick is a kind of refractory products with Cr2 O3 included. In high temperature, Cr2 O3 and Al2 O3 form into continuous solid, so the high temperature performance is better than the pure corundum products. The chrome corundum br...
Corundum brick is a refractory product with the content of alumina more than 90% and the principle crystalline phase is corundum, which have the characteristics of high cold compressive strength (up to 340MPa), high load softening start temperature ...
Corundum Fire Brick Introduction
Corundum brick is a refractory product with the content of alumina more than 90%, which have the characteristics of high cold compressive strength (up to 340MPa), high load softening start temperature (more than 17...
Description of Corundum Mullite Bricks
Main material of corundum mullite brick is imported plate corundum, high pure fused corundum, adopt advanced superfine powder adding technology, it is made by the mixing material, drying, molding and burned in...
Sintered corundum brick uses dense alumina clinker as raw material. The brick has high melting point, stable performance at high temperatures, good mechanical strength and wear resistan at room temperature and high temperature. Anti-metal erosion and ...
Introduction of Fused Cast Zirconia Corundum Brick
Fused cast zirconia corundum brick is also called as AZS brick, fused cast zirconia corundum brick, the English abbreviation is AZS, it is according to three chemical constitution of Al2O3－Zr02－Sio2 tern...
