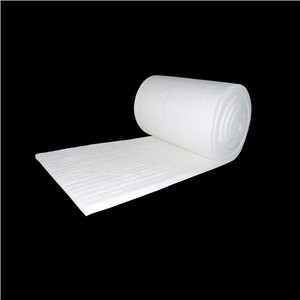

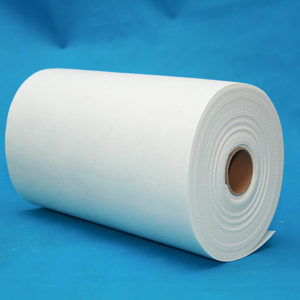

Ceramic fiber blanket is composed of long, flexible, interwoven fibers manufactured by the “blown”and the “spun” process yielding a strong, lightweight yet durable blanket for applications in a temperature range from 1100°C to 1430°C. Ceramic fiber insulation blanket has the characteristics of high tensile strength for longer life and durability. Ceramic Fiber Blankets contain no binders and are completely inorganic.
Ceramic Fiber Blanket Properties
Excellent thermal stability
Resistance to thermal shock
Low thermal conductivity
Low heat storage
Low shrinkage
Good obstructing voice and mechanism strength
Good springiness for fibers
Ceramic Fiber Blanket Physical & Chemical Index
1260 Blanket
1400 Blanket
1500 Blanket
1600 Blanket
Classification temperature ( °C)
1260
1425
1500
1600
Melting point (°C)
1760
1700
1760
–
Colour
White
White
Blue gree
White
Fiber diameter ( u m)
2.6
2.8
2.65
3.1
Fiber length (mm)
~250
~250
~150
~100
Linear shrinkage(%)
(1100oC x 24 hrs)1.8
(1300 o C x 24 hrs) 1.5
Shot content (>212 micro meter) (%)
18
18
Thermal conductivity Kcal/mh °C (W/mK) ,ASTM C201
1260 blanket
64 kg/m3
96 kg/m3
128 kg/m3
160kg/m3
mean 400°C
0.13
0.12
0.07
0.09
mean 600 °C
0.21
0.17
0.12
0.14
mean 800°C
0.30
0.25
0.16
0.20
1400 blanket
128 kg/m3
160kg/m3
mean 600 °C
0.13
0.14
mean 800 °C
0.20
0.20
mean1000 °C
0.29
0.28
Chemical composition (%)
Al2O3
47.1
35.0
40.0
72
SiO2
52.3
49.7
58.1
28
ZrO2
15.0
Cr2O3
1.8
Bulk density(Kg/m3)
64,96,128,160
Available size(mm/roll)
7200*600*6,12.5,20,25,38;3600*600*50
Ceramic Fiber Blanket Application
Lining, insulation and repair for furnaces, kilns, ovens, boilers
Insulation for power plant, turbine, thermal reactor, generator, and nuclear applications
Expansion joint seal and insulation
Wrapping and insulation for high temperature pipe or metal casting
Fire protective insulation and lining
Ceramic Fiber Blanket Manufacturer-RS refractory
RS refractory manufacturer is specialized in producing various ceramic fibers, such as ceramic fiber blankets, ceramic fiber boards, ceramic fiber papers, ceramic fiber wools, ceramic fiber ropes, ceramic fiber cloths. We adopts high quality raw materials, so our ceramic fiber products are with excellent performance. If you have any purchase plan for ceramic fiber refractory materials, please feel free to contact with us!
