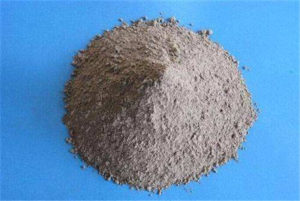

Corundum plastic refractory is a type monolithic refractory material in clay lump or agglomerate shape. Wear resistant plastic refractory are usually rammed, vibrated or pressed when applied into construction or repair process. So corundum plastic refractory is very convenient and economical. Abrasion resistant plastic refractory raw material includes: chromium corundum and silicon carbide aggregate, power or liquid binder and additives. Wearable corundum plastic refractory has excellent high temperature abrasion resistance and chemical erosion resistance, is very suitable for circulating fluid bed boiler cyclone, furnace wall lining and parts where coal ash and slag impact is severe.
Corundum Plastic Refractory Features
High temperature abrasion resistance, chemical erosion resistance.
Thermal shock resistance, high rupture modulus.
Good plasticity, good palling resistance, long service life.
Convenient for application, can be rammed or painted directly.
High temperature stability.
Corundum Plastic Refractory Technical Indexes
Item
Index
Chromium Corundum aggregate(%)
20~32
Chromium Corundum powder(%)
20~36
Silicon carbide(%)
15~30
Phosphoric Acid (%)
15~17
Silica fine powder(%)
4~6
Alumina fine powder(%)
4~8
Aluminum hydroxide(%)
3~5
Bulk Density(g/cm3)
2.8
Modulus of Rupture(110℃*24h) MPa
12
Compressive Strength(110℃*24h) MPa
65
Modulus of Rupture(1100℃*3h) MPa
17
Compressive Strength(1100℃*3h) MPa
90
Corundum Plastic Refractory Applications
Anti-corrosive corundum wearable plastic refractory has the advantages of high abrasive resistance, thermal shock resistance corrosion resistance, convenience in construction and long service life. So corundum plastic refractory is an ideal material for construction or maintenance of wear-out parts such as circulating fluidized bed boiler furnace zone, cyclone separator, furnace inner protective lining, garbage incinerator, catalytic cracking unit and so on.
RS Kiln Refractory specializes in manufacturing high quality monolithic refractory and shaped refractory materials. RS refractory products features wide range coverage, high quality, favorable price and sound after sale service. RS brand refractory products have exported to more than 60 countries and regions in last 10 years. In May 2010, RS successfully passed ISO9001:2008 quality system certification. RS group sincerely hope to cooperate with you.
