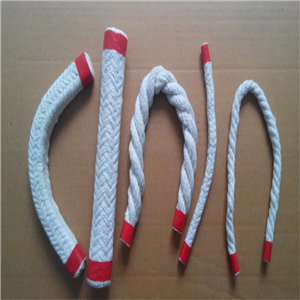

Ceramic fiber rope is produced from high temperature ceramic fiber yarn reinforced with metal wire or fiberglass filament carrier and is suitable for high temperature applications up to 1260℃. Ceramic fiber rope’s main material ceramic fiber is produced from high purity alumina silicate through strictly controlled high temperature furnace melting and fiberizing process. There are mainly 3 types of ceramic fiber rope which include ceramic fiber twisted rope, ceramic fiber round braided rope, ceramic fiber square braided rope. Ceramic fiber twisted rope is produced by twisting multiple plies of ceramic fiber wicking together features with multi-strand structure, soft but with good handling strength. Ceramic fiber round braided rope features with round braid structure, medium density with enhanced tensile and abrasion-resisting strength. Ceramic fiber square braided rope has firm square structure for tight sealing applications, high density, enhanced tensile and abrasion-resisting strength.
Ceramic Fiber Rope Features
Compressible and resilient.
Lightweight, low thermal conductivity, high temperature stability.
Excellent handling strength, low heat storage
Thermal shock resistant, used as fireproof rope and flame proof rope.
Chemical resistant, compatible with most corrosive chemicals, commonly used acid and alkali (exceptions are hydrofluoric, phosphoric acids and concentrated alkalis).
Ceramic fiber rope price performance is high.
Parameters of Ceramic Fiber Rope
Item
Twisted Rope
Round Braided Rope
Square Braided Rope
Continuous working temp.
1000℃
1000℃
1000℃
Max. working temp.
1260℃
1260℃
1260℃
Organic Content
≤15
≤15
≤15
Loss After Firing(800℃)
12±2
12±2
12±2
Dimension
Φ6-50mm
Φ6-50mm
L*W: 6*6-20*20mm
Applications of Ceramic Fiber Rope
Refractory ceramic fiber rope is widely used in foundry, shipyards, refineries, power plant, and chemical plant as high temperature insulation seals, packing, gasket for door/openings in ovens, stoves, furnaces boilers, expansion joint packing, metal casting seal and seal or gasket in other high temperature applications.
Why to Choose RS kiln Refractory Ceramic Fiber Rope
Rongsheng refractory manufacturer locates in Xinmi city where abounds in refractory mineral and is the production base for high quality, favorable price refractory raw material and finished products. Since established in the early 1990s, Rongsheng refractory material factory has been attaching importance on continuous innovation and development, now Rongsheng kiln Refractory has become a comprehensive enterprise in refractory material industry, covering metallurgy, building materials, electric power, chemical industry, etc. RS kiln Refractory main products have been exported to many countries such as America, India, Iran, South Korea, Thailand, Australia and so on.
If you have any question or want to know more information about our refractory products, please feel free to contact us.
